Working with Objects

What do we mean by objects? Here we mean objects that appear on the sky map, discrete radio sources found in a cosmic radio source catalog, pulsars, the Sun, Jupiter, and the Moon. Generally, these represent entities limited in angular extent that we can detect with a radiotelescope (or least somebody can detect them with a radiotelescope). The difference between catalog radio sources and pulsars is an artificial one. Both are actually discrete radio sources and both appear in catalogs, but we separate them in this program because each group holds a special interest to some observers. The Sun, Jupiter, and the Moon are the only planetary radio sources that are likely to be detectable with a small radiotelescope. The other planets are excluded because their emissions are very weak.

Catalog radio sources (usually just referred to as radio sources in this program) occur outside of the solar system. Some, such as supernova remnants occur in our own Milky Way galaxy while others such as quasars may occur at the far reaches of the universe. These sources, along with the pulsars, move very little in position over time from from our perspective because because of the great distances at which they are found from us. Thus we can assume that from year to year their positions on the celestial globe will remain the same. These sources are represented on the sky map as small circles. You can define a different color circle for radio sources and pulsars. Very strong radio sources are assigned a slightly large circle. Optionally the circle can be filled in with color. Color and fill in are defined in the Color Options panel.

 The Sun, Jupiter, and Moon are the "wanderers". Their positions require calculations for a very specific time and even the viewers position on the Earth. The objects generally are found close the the plane of the solar system that we call the ecliptic. Displaying the ecliptic line can make it easier to spot the icons representing these solar system objects.

Finding an Object
By Name - If you know the name of an object you can use the Find feature (CTRL+F or via the Tools menu) to locate it on the screen.  If matches to your search string are found, you will receive the Select Source list box (see below) with the matching objects in the list.
By Position -  If you know the object's position coordinates, you can use the RADEC boxes at the bottom of the screen to guide your mouse to the proper location, or you can specify a location using the Right Mouse Menu obtained by right clicking on the sky map and selecting Manual RADEC Entry. This will place the center of the screen at the specified location.

Listing Objects in a Specific Area

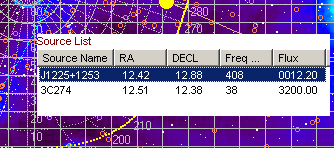

You may list objects from a specific area of the screen by placing the mouse cursor near the object and right clicking to receive the Right Mouse Menu. Click on the menu entry "Info".  A list will be displayed showing all objects within the immediate area of the mouse in a panel called the Select Source panel..  The area covered by the list depends on the level to which you have zoomed the screen. A full sky map will likely bring up more objects in a crowded region of the sky than if you are zoomed in on the area. You may only receive one object in the list or no objects whatsoever if the mouse cursor was not close enough to an object.



The Select Source panel is scrollable with the up down arrow keys after any item in the list has been selected.  Make sure you scroll down the list to see all listed objects. To move the Select Source panel to a different place on the sky map, drag it using the upper left corner.  Often you will be looking for the stronger sources so you can usually judge which source you want by its flux listing even if the name is unknown to you. You can sort the list of sources in the Select Source panel by clicking on any of the column headers.  So if you want to list items by flux values click on the Flux column header.  If you wish to sort the column in the reverse order click on the same column header again.  Pulsars will only show up on the list if you have elected to Show Pulsars under View/ Pulsars/ Show Pulsars on the program main menu.

You can populate the Select Source panel in two additional ways:

Using the Select Source Panel
The Select Source panel is your gateway to getting more information about an object and to performing some basic tasks related to the object.  To select a given source, and thus have the functions of the Select Source panel apply to that source, you must highlight (click on) the source in the list that you want to use. Once the source is you want is highlighted press the right mouse button and you will see a dropdown menu with the following functions:
