What Antenna Should I Use to Hear Jupiter?

A Beginners Guide:

In order to receive Jupiter above the roar of the galactic background radiation, you are going to need an antenna with some gain (directionality). The absolute minimum antenna which will work for you is a dipole cut to the frequency of interest. With this antenna you will be able to hear some of Jupiter's louder bursts. Dipoles are good antennas for beginners because they are so easy to make and erect. They match easily to the feed line and are cheap to construct. Here is how to make a dipole antenna for Jupiter:

Decide on a frequency somewhere between 18 and 22 MHz. Let's say you pick 21 MHz. To determine the length of your dipole divide this number (21) into 467. This will give you a length of 22.24 feet. Go to the hardware store and buy 25 feet of #12 stranded copper wire. It doesn't matter whether or not the wire is insulated. While you are there buy a roll of good strong nylon twine. You are going to need a few square inches of Plexiglas for insulators or else you can buy some commercially made insulators from your local Radio Shack store. You need enough 50 ohm coaxial cable to get from your antenna location to the receiver. My favorite coax for this type of project is RG/8X mini-foam. RG/58AU, sometimes used by CBer's and short-wave listeners can be used, but it is much more lossy and susceptible to interference. Full size RG/8 coax is awkward and heavy and better suited to transmitting uses. You also need a connector that will match the coax to your receiver antenna jack. I don't suggest the solderless type connectors.
Measure your wire out (remember 22.24 feet for a 21 MHz antenna) and then add 12 more inches to the total length before you cut it. You need the extra length to make mechanical connections to the insulators. Now cut this 23.24 foot piece of wire precisely in half. Strip away three inches of insulation from the ends of each wire if you are using insulated wire.

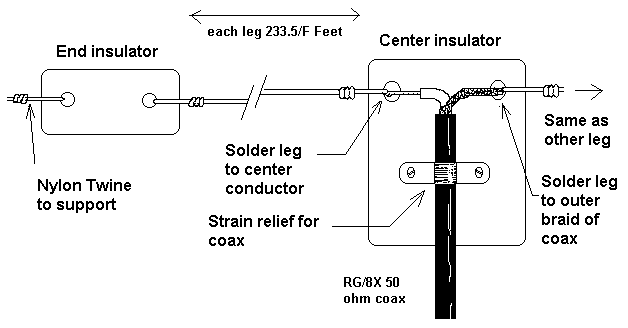

Dipole Diagram***
The center insulator is where you will be making the electrical connection from the coax to each leg of the dipole. It is important that these electrical connections do not actually support the weight of the coax. If you really want to get fancy with this part of the antenna you can buy a commercially made balun which will act as a center insulator and transformer to more evenly couple the energy from the antenna into the coax. I have not found baluns to be particularly advantageous in this application, however, other Jupiter listeners do use them.

Pointing the Dipole

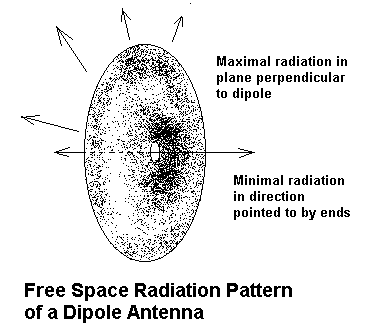

Dipole Radiation Pattern Diagram***
As we said, the dipole has some directional characteristics. The radiation pattern of a dipole in free space can be visualized as doughnut shaped with the dipole passing through the center. The dipole is thus most sensitive to signals arriving from directions perpendicular to its length. It is very insensitive to signals arriving from either direction in which the legs are pointed. Since Jupiter will trace a large arc across the sky, lying close to the horizon in the east and west directions and higher in the sky as it transits the meridian (north - south line) a fixed antenna will not be always have its main beam pointed toward Jupiter except for certain combinations of time of year and observer latitude. A single dipole in a fixed direction will thus always present some compromises. I would suggest that observers at mid and higher latitudes orient their dipoles so that the legs point east-west. Observers nearer the equator will get better coverage with a north-south orientation. A better solution is to have two dipoles, one N/S and one E/W, which can be switched at the receiver in order to select the one which is best pointed for the position of Jupiter at the time of observation.
When a dipole is suspended close to the ground (less than a wavelength high), the pattern is significantly altered. The ground below the dipole acts as a reflector forcing the primary beam of the antenna higher as the antenna is lowered. Many ham radio and shortwave listeners curse this effect because it forces them to erect their antennas high above ground if they are to effect a maximal signal towards the horizon for terrestrial communications. For mid-latitude and lower observers of Jupiter, however, we can use this effect to help point the beam pattern towards Jupiter, which at times can be high above the horizon.

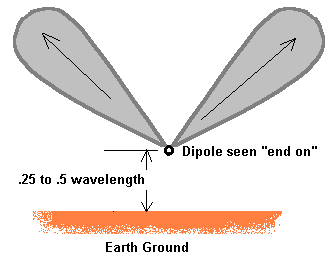

Dipole .25 up Diagram***

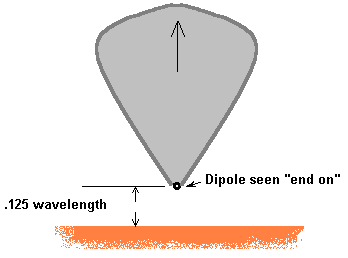

Dipole .125 up Diagram***
As you see in the diagrams above, a height of about one eight wavelength above ground concentrates the beam of the antenna straight up. As the antenna is elevated the beam becomes bi-lobed and will have its greatest concentrations at some intermediate angle. The angle is also affected by the electrical conductivity of the ground below the antenna. Sandy, dry soil has less affect than wet humus soil. The match between the antenna and transmission line is also affected by the height above ground. At one eight wavelength above a good ground the feedpoint impedance of the antenna is lowered to about 23 ohms. This mismatch to a 50 ohm coax will cause some loss of signal, however, in my experience, the gain in directivity outweighs this loss.

Other Antennas

The dipole has been given the most attention here because it is so inexpensive and easy to make. As a Jupiter antenna its performance is, however, somewhat marginal. You can really increase your chances of success by using a more directional antenna which can be steered in direction. A three or four element yagi antenna is perhaps the most practical choice. Several commercially produced yagi antennas for the 15 meter (21 MHz) ham band are available. These have price tags of about two to three hundred dollars. You can find suppliers here on the internet. The first time I remember hearing Jupiter was on a radio quiet morning using a home made 2 element yagi for 15 meters. The signal bursts were at least 12 dB above the background noise. The design for the antenna was taken from an old ARRL handbook and cost less than $50 to build. A small light design like this can be easily rotated with a TV antenna rotator. If you really want to get fancy, you can use a second rotator for elevation control, though as with the dipole, it is also possible to affect the beam take off angle by adjusting the height of the antenna above ground.
A two element cubical quad antenna has also been suggested as a Jupiter antenna. Plans for these and other beam antennas are available in the ARRL Antenna Handbook.

Antennas Not to Use!

There have been a number of publications of articles suggesting the use of a small loop antenna placed close to a screen reflector. This antenna is NO GOOD for Jupiter. It is unfortunate that so many potential observers have been led down this path. Don't waste your time with this antenna.
Occasionally someone will also ask if is possible to receive Jupiter on an "active antenna" with a small whip element. This will not work. These devices are simply preamplifiers matched to these little extendable whips. It will simply swamp your receiver with background noise which it receives equally well from all directions except up.
