Welcome to Issue #9 of the Radio-Sky Journal


Febuary 2008

Copyright 2008 by Radio-Sky Publishing
All rights reserved.

Contents:
Jupiter Hits Bottom in 2008
AD8302 RF/IF Gain and Phase Detector
Amateur Does Digital Correlation
ADC News
SkyPipe to FITs
SpectraCyber /VLF Telescope UDS Beta for SkyPipe
More New UDS Support
Radio Astronomy Teachers Notebook
_________________________________________________________________

Jupiter Hits Bottom in 2008

Jupiter is lower in sky for northern latitude observers than it has been in 11 years. Far northern latitude observers will be most severely affect by this shift in Jupiter's declination. The maximum elevations reached by Jupiter for an observer at latitude +50 this January will be as low as 17 degrees. The situation will slightly improve over the rest of the season.  This will be challenging. Why? Because it hard to point a high frequency (below 30 MHz)  antenna towards these low angles. Ground reflections tend to place the beam higher in the sky.  To reduce this effect you must raise the antenna to a greater height above ground.

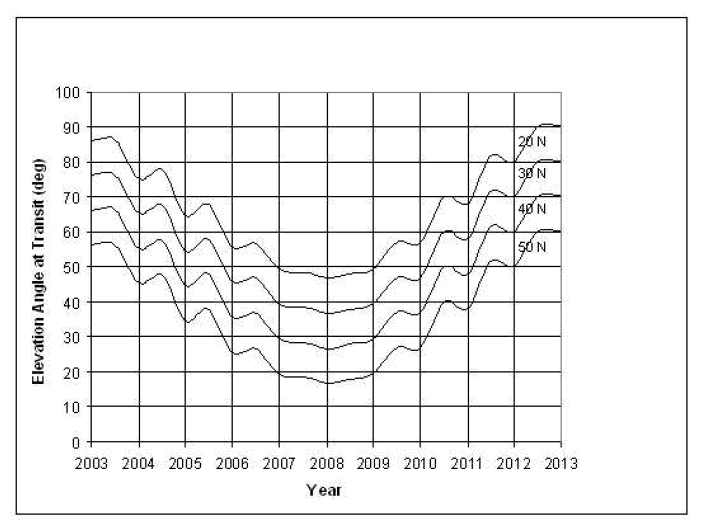

Richard Flagg has prepared the chart above to illustrate the situation for the new edition of the Radio Jove Antenna Manual. The elevation of Jupiter at transit is shown for four northern latitudes. The manual includes suggestions for modifying the basic Radio Jove dual dipole antenna to catch Jupiter at these lower elevations. Changes include raising the antenna and adding a 135 degree phasing line. See the retrofit manual for modifying existing Jove dual dipole antennas. This would be a good time to own a Yagi type antenna mounted on a tall tower, but most of us will have to just try to get our dual dipoles up higher to achieve the lower beam elevation.

One helpful aspect of the current Jupiter season is that it occurs while the Sun is still in quiet mode at the beginning of a new cycle of sunspots. This means the ionosphere will generally remain less refractive of radio signals from space and Jupiter's weak signals stand a better chance of being heard because of this.


_____________________________________________________________

AD8302 RF/IF Gain and Phase Detector


Analog Devices produces several integrated circuits which should be of interest to amateur radio astronomers. One device, the AD8302, has the
potential for replacing a large number of individual components in an interferometer.
>
In a simple interferometer we utilize signals from two antennas, usually separated by many wavelengths. Of prime importance is the difference in phase between the two signals. We won't go into the details of interferometer theory here, but you can find a simple, non-mathematical explanation in William Lonc's "Radio Astronomy Projects" book. Suffice it to say that depending on the separation between the antennas, and the angle at which the source appears in the sky, the waves from the cosmic source will arrive at the antennas at slightly different times. This difference in arrival times means that there will be a "phase" difference between the signals that when charted can tell us something about the cosmic sources position and size.

There are several ways that we can extract this phase information from the signals arriving from the two antennas. The signals can simply be added together or can be multiplied together with the appropriate circuitry. Care must be taken in all parts of the interferometer to make sure that the phase relationship is not transformed or destroyed by asymmetries in the two branches of the interferometer leading from the point of signal combination to the antennas. The AD8302 can be thought of as a black box that is capable of providing an accurate measurement of the difference in phase between the two signals applied to separate inputs. You can see how it might be of value to the amateur radio astronomer.

Before we get to excited we should note that the AD8302 is not capable of performing its magic on the tiny un-amplified signals coming directly
from the antennas. The usable input range for the AD8302 is from -60dBm to 0dBm. The signals extracted from the antennas are going  to need 80 dB or more of amplification before they can be combined in this device. The signals will need to pass through several stages of amplification and bandpass filtering prior to being applied to the AD8302 input ports. One of the beautiful things about the AD8302, however, is that it allows the signal levels of the inputs to vary by a wide range and still present an accurate phase measurement. Thus we can theoretically be less concerned about the absolute gain in each arm of the system than we would be in most other simple interferometers. The AD8302 is usable up to 2.7 GHZ!

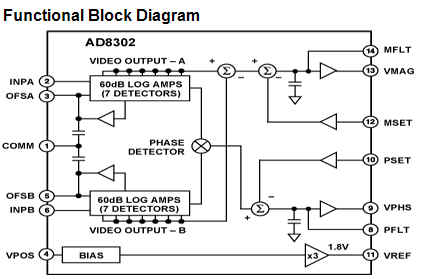

The figure above shows the basic configuration for the chip when measuring signals from two separate sources. The inputs are on the left and outputs on the right. Pin 13 produces a voltage that is proportional to the magnitude ratio of the two inputs. Ideally, this would remain constant in the interferometer application. Pin 9 outputs a voltage that is proportional to the phase difference of the two input signals.

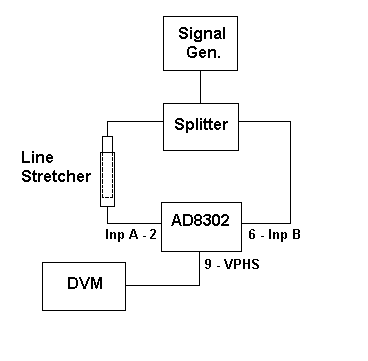

My initial experiments with the AD8302 provided no surprises. The chip seemed to work as promised even though I was a bit sloppy with the construction of the test setup. I used a power divider from to split a signal from a 144 MHz signal source. In the line going to one of the inputs I used a "line stretcher"; a brass tubing coaxial line. Changing the length of the line stretcher produced a smooth change in the voltage measured on pin 9. Unfortunately, the device is available only in a tiny surface mount package. I had to hack a circuit board that I had from a DDS project to make a breadboard on which to solder to the TSSOP device.

Download the datasheet from the Analog Devices website at: http://analog.com .  There is a part number search box on their home page. In the datasheet you will find a couple of other interesting applications (not surprisingly, they don't really mention interferometry). These include a setup for measuring input phase and gain of a device such as an amplifier. Another circuit is a reflectometer to measure the vector reflection coefficient of an arbitrary load. There are probably many other possible ways this device could be used in an observatory. Please write and tell me what you come up with.

Note: If you use this device in a simple interferometer, you will lose the amplitude component of the measurement. You will probably not be able to see the characteristic rise and fall of the signal level as source passes through the beam pattern of the telescope. Still, it will be an interesting experiment.
__________________________________________________________________

Amateur Does Digital Correlation

As explained in the article above, interferometry involves comparing signals from two antennas. There are several ways the comparison can be made. The methods most commonly used by amateur radio astronomers involve adding or multiplying the signals in an analog device such as combiner or mixer. We use these methods partially because they are easy to implement using common devices. More and more often, professional observatories use devices called digital correlators in their interferometers. Using digital techniques, it becomes possible to combine signals that were recorded on tape from two widely separated observatories. This is the heart of Very Long Baseline Interferometery (VLBI). The wide separation of observing antennas (the baseline) provides interferometers with very high resolution. Digitized telescope data can also be processed by various programs to improve the quality of the measurements.

Now that home computers have become very powerful and inexpensive, it becomes quite reasonable that VLBI could be accomplished by
amateur radio astronomers. This challenge has been taken on by some amateurs in the European Radio Astronomy Club (ERAC). The first step towards amateur VLBI is to develop a digital interferometer that works with signals from local antennas. Marko Cebokli has done just that with his "SImple Digita Interferometer" or SIDI. Read about this interesting project at: http://lea.hamradio.si/~s57uuu/astro/sidi1/index.htm

Much still needs to be done. In order to combine signals recorded from widely separated locations, the problem of having extremely well synchronized local oscillators must be addressed. Professional observatories use expensive atomic clocks. There is talk in the amateur community of using GPS derived oscillators or broadcast radio signals to synchronize observatories. Whatever the solution turns out to be, it will be a great day for amateur radio astronomy when those first VLBI fringes are published.

______________________________________________________________

ADC News

In a past issue we discussed the problems with sample timing on multitasking operating systems such as Windows and Linux. The solution has always been to move the timing away from the computer and into an external device. By using a microcontroller with an ADC, we can rely on the crystal controlled heartbeat of this device to sample data evenly over time. Data sent to the computer serial port is buffered by the computer, so even if the computer "gets busy" doing something else, the data will be preserved in the buffer and read into the strip chart when the CPU has time to do so.

A new ADC system is being developed that will monitor an external pin that can be supplied with a timing pulse. This could be from a very stable external oscillator or the one pulse-per-second (PPS) output of a GPS. This input signal may used to initiate the collection of a sample or "train" of samples using the crystal controlled sampling of the microcontroller. Experiments using a PIC microcontroller suggest that it is possible to ensure that the sample is collected with an accuracy of about 10 milliseconds using this system.  With the GPS marking the start of each second two remote observers can be synchronized to within this 10 millisecond window.  Correlations can be made in the time domain at more than a power of 10 better accuracy than when relying on the internet clocks.  This means that there can be more certainty that two distant observers are seeing the same event.

If you already own a MAX186 ADC from Radio-Sky, you won't have to throw it away and start again. The future also brings an adapter board that will provide you with the same timing and serial port capabilities. Keep an eye on the website.


_________________________________________________________________

SkyPipe to FITS Conversion Tool


Hannes Mayer is one of the most prolific amateur scientists I know. He has his hands in numerous areas from radio astronomy to plants from the bryophyllum group. No doubt Hannes (or Captain as he is reverently called) picked up on all of the clamor for a way to get SkyPipe files into FITS format. FITS is the semi-universal file format for astronomical images and other types of data. FITS is used by most professional observatories and can accommodate data of numerous dimensions. FITS readers exist for most computer platforms.

Hannes has created a JAVA utility to convert SkyPipe data format files, (*.spd) to FITS format. You can find the utility on the web at: http://www.jupiterradio.com/jove-spd2fits.php

Look around his web pages for many more great tools, information pages, and projects. Thanks Hannes for your support of our efforts.

________________________________________________________________

Spectra-Cyber and 40 kHz  VLF Telescope UDS for Radio-SkyPipe

If you own one of Radio Astronomy Supplies Spectra-Cyber receivers or one of their 40 kHz receivers, you can now feed it's output in continuum mode to Radio-SkyPipe. (I believe this interface will also work with the Ultra-Cyber receivers but I have not had this confirmed.)
Some time back I announced the User Data Source project which opened the possibility of feeding most any type of time/value data into Radio-SkyPipe. If you have forgotten what this is all about see: http://www.radiosky.com/skypipehelp/UDS_model.html .  Basically, a UDS is a small program that translates information into a form that Radio-SkyPipe can accept.  These are available free to Pro license holders of Radio-SkyPipe.

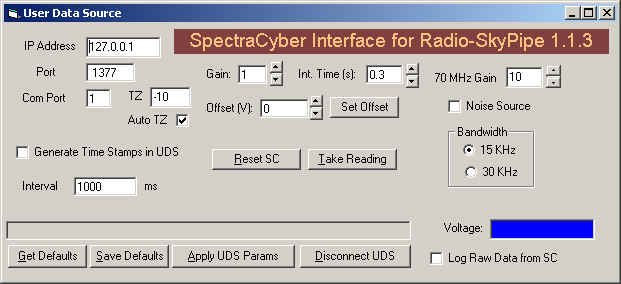

The Spectra-Cyber operates in a frequency sweeping or fixed frequency "continuum mode". It is the second of these modes that the UDS utilizes. A small control panel appears when the UDS is executed allowing you access to the various computer controlled functions of the receiver. Of course all of these controls may not make sense to the VLF receiver, but the interface still works for that device.




Since the UDS uses TCP to talk to SkyPipe, there must be TCP installed on the SpectraCyber PC for this to work. It also requires that own a
Pro Version of SkyPipe.

1. Download and run the UDS installation on the SpectraCyber PC.  http://radiosky.com/skypipe/SpecCyberUDS.exe

2. Configure Radio-SkyPipe to talk to the UDS:
Under Options / Data Source select CH1 to use UDS CH1 as its data source. Select the UDS configuration button and point to the IP and port that you also configure the UDS to use. If running SkyPipe on the PC that hosts SpectraCyber, use the loopback IP of 127.0.0.1 for both the UDS IP and SkyPipe UDS communication options. This usually works. If running the UDS and SkyPipe on the same PC, browse to the UDS executable at the top of this panel and tell SkyPipe to start the UDS automatically. Save it all.


3. Open the UDS program and make sure the local IP it binds to matches the IP you set SkyPipe to look for the UDS on. If you are using something other than Com Port 1 for the SpectraCyber, put that in. The Gain, Offset, etc. controls should immediately affect the SpectraCyber. Set that up and apply and save everything as defaults.


4. Start a SkyPipe chart and see what happens.
___________________________________________________________________

Other New UDS software for Radio-SkyPipe


If you a Pico AD-10 or AD-12 ADC you can use the new Pico UDS software available in the UDS zip package.

New also is expanded support for Metex brand PC linked multi-meters. Previously only the Metex-11 was supported. You can now configure
the baud rate to support other Metex products like the Metex-22. Though I don't have one to test with, after reviewing the documentation for the Metex 3640, I believe the UDS will work with this meter also. If you have a Metex PC linked meter and it does not work with this UDS, let me know and I will try to get it working for you.

Experimental UDS modules have been released for the continuum output of the SDR-14 software defined radio from http://rfspace.com

___________________________________________________________________

Radio Astronomy Teacher's Notebook Reprinted

Honestly, I was going to retire this books several times. I was tired of running to the printer to have a few copies made at a time for a very dear price.  But the orders kept trickling in as people are hungry for beginner type radio astronomy information.  This book contains some simple projects.  Some of the technology is a little old, but principles are still valid. So I made some revisions and had 250 copies printed of the 160 page book thinking that this might last a lifetime.  The price went down a bit too. You can find it on the website.
